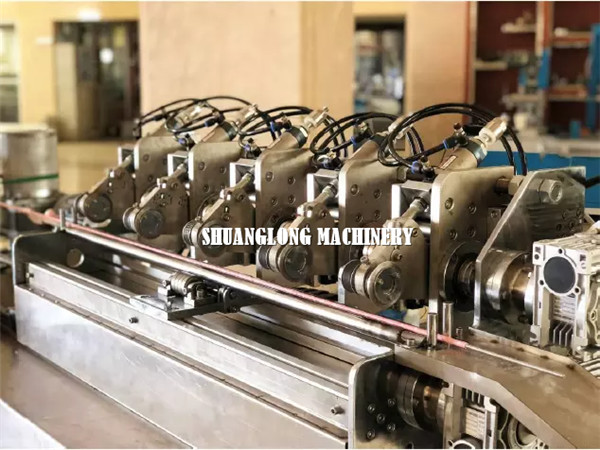

Automatic Single piece paper straw making machine
Product Application
Features:
1. Human-machine interface for operation, user friendly;
2. Paper reel stand included, placing easily;
3. Single or double sides glue unit supported
4. Spiral winding, specialized operating system;
5. Multi-blades cutting system, controlled by Servo motor;
6. Optional: All stainless steel body.
Quick Details
1. Adopted man-machine control interface, touch screen parameters setting, easy operating.
2. Controlled by encoder, driven by servomotor.
3. Automatic and high efficiency. 150-225 pcs straws /min.
4. Winding by belt and tension device adjusted by handle wheel.
5. Select and use famous brand suppliers for motor and electrical equipment.
6. Thermal/heat treatment frame to remove internal stressfor longer service life.
| Technical parameter | | Technical parameter | |
| Paper layer | 2-5 layers | Electric machinery | Shanghai |
| Inner diameter | 4-12mm | Interface | Schneider |
| Thickness | 0.3-1mm | Inverter | 4kw schneider |
| Speed | 0-55m/min | Actuating element | schneider |
| Cutting length | 120-1050mm | Signal elecment | OMCH |
| Way of gluing | Single/double side | Pneumatic | Air TAC |
| Fixed length | Encoder | Electrical components | schneider |
| Operator | 1-2 person | Servomotor | 1kw schneider |
| Speed control | Pole free speed | Moving screw rod | ABBA Taiwan |
| Power supply | 380v/ 3phase/ 50hz | Moving block | ABBA Taiwan |
| Blade | 6 driven blades | Main part dimension | 5600x1600x1750mm |
| Glue method | Three layer spray type | Overall Dimension | 8000x6000x1800mm |
| Weight | 1200kgs | | |
